Surface Water Control (continued)

Remember that high–faced bars are barriers to wheeled traffic. On trails that serve wheeled traffic, use either reinforced grade dips or rubber waterbars instead of traditional waterbars. Bikers do not like waterbars because of the "crash factor." It is important to place rubber waterbars such that wheeled vehicles cannot go around them (creating a water channel around the waterbar). Be sure to cut the rubber belting so that it bends easily under the wheel. A stiff rubber bar at a 45° to 60° angle can cause wrecks (Figure 23).

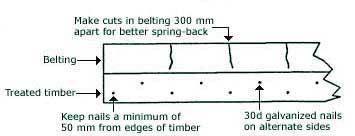

Figure 23—Rubber belt waterbars are good choices
on trails used by wheeled vehicles. They are not
as good as reinforced grade clips.
