Trail Buster: Portable Powered Fireline Builder

Vince Welbaum, Helitack Supervisor
Keith Windell, Project Leader

The Trail Buster (Figure 1) is a gas-powered portable line digging machine. The tool can build fireline and recreational trails. It is powered by a Husqvarna Model 36 chain saw powerhead and is made by Ponsness/Warren of Rathdrum, ID. The machine costs about $1,275, including the power head.

The Missoula Technology and Development Center (MTDC) organized a field evaluation of this machine based on a positive review by the Montana Department of Natural Resources and Conservation (DNRC). The DNRC used the Trail Buster for fireline construction. In addition, they said the machine was very effective for helping mop up fires when it was used in conjunction with water from fire trucks. The manufacturer has received positive testimonials from loggers who used the machine to build firelines around logging units.

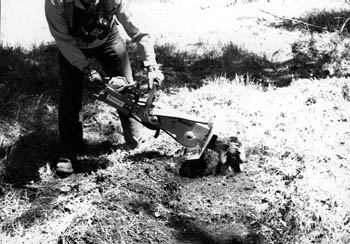

Figure 1—The Trail Buster being used to construct fireline for
a prescribed fire.

Field Evaluation

The field evaluation was conducted by fire crews from the Payette National Forest, New Meadows Ranger District (ID); the Chugach National Forest, Seward Ranger District (AK); the Wallowa-Whitman National Forest, LaGrande Ranger District (OR); and the Umatilla National Forest, North Fork John Day Ranger District (OR). The Trail Buster was used throughout the 1999 season on firelines for prescribed fires (Figure 2), for recreational trail projects (Figure 3), and for fireline construction during wildfire suppression.


Figure 2—Fireline constructed with the Trail
Buster.


Figure 3—Dust will fly when the Trail Buster
is used in dry soils.

The evaluating crews were trained in maintenance, safety, and use of the Trail Buster by the factory representative and MTDC. Crews were encouraged to practice with the machine before time and motion data were collected. They were instructed to keep track of:

All crews were given an evaluation form to document their findings and suggestions. This Tech Tip summarizes their findings.

Results

Productivity

Tables 1 and 2 summarize the productivity of the Trail Buster during the 1999 field evaluations.

Table 1—Productivity of the Trail Buster when used to construct fireline on prescribed fires and a wildfire during 1999 on the North Fork John Day Ranger District (OR).
Reporting Unit North Fork John Day Ranger District
Machine task   Wildfire line construction Prescribed fireline Prescribed fireline Prescribed fireline
No. of operators   1 5 4 7
Percent slope   5 to 15% 0 to 5% 0 to 60% 0%
Aspect   - - - -
Vegetation present   Ponderosa pine with
some Douglas-fir,
pine grass,
needle mat.
Douglas-fir,
ponderosa pine,
light grass.
Fir, pine, thick grass
with some timber litter.
Lodgepole pine
regeneration,
huckleberry.
Site conditions   Few surface rocks.
2 to 4 inches of
soil/grass/needle mat.
Rocks with
light grass and
timber litter.
Thick grass, brush roots,
timber litter, rocks.
Ground was damp.
Scab flats, rocks,
brush, and grass.
Average width of line cleared   12 inches 10 to 12 inches 6 to 12 inches 12 inches
Average depth of line cleared   4 inches 0 to 4 inches 2 to 6 inches 6 inches
Length of line constructed   260 feet 2000 feet 2000 feet 150 feet
Average line production
per hour (includes operator
rest breaks and machine
downtime-excludes lunch break)
  780 feet/hour (machine
only operated for
20 minutes)
400 feet/hour
(5 hours on work
site-excluding
lunch break)
286 feet/hour (7 hours
on work site-excluding
lunch break-broken
down for 1 hour during that period)
50 feet/hour
(3 hours on work
site-excluding lunch break)
Percent machine downtime   0% 0% 14.3% 0%
Quality of line   Excellent Acceptable Acceptable to unacceptable Excellent


Table 2—Productivity of the Trail Buster when used to construct prescribed firelines and trails during 1999 on the La Grande (OR), Seward (AK), and New Meadows (ID) Ranger Districts.
Reporting unit   LaGrande Ranger District Seward Ranger District New Meadows Ranger District New Meadows Ranger District New Meadows Ranger District
Machine task   Prescribed fireline Prescribed fireline Prescribed fireline Recreation trail Walkway to heliport
No. of operators   2 4 2 4 10
Percent slope   0 to 20% 5 to 10% 20% 0 to 10% 0%
Aspect   South West East South Flat
Vegetation present   Douglas-fir, grassy
brush understory,
heavy duff,
kinnikinick.
Calamagrostis grass,
fireweed, alder
mixed hemlock,
and spruce.
Ninebark, grass,
ponderosa pine
and ceanothus.
Tall grass,
bunch grass
Grass
Site conditions   Dense brush,
decayed wood
concentrations.
Thick roots, grassy,
and a few rocks.
Primarily green
brush.
Existing trail with
some rockand rough
uneven ground
Helibase site
Average width of line cleared   12 inches 16 inches 30 inches 30 inches 40 inches
Average depth of line cleared   6 inches 2 to 3 inches 2 inches 2 inches 5 inches
Length of line constructed   500 feet 1200 feet 200 feet 400 feet 300 feet
Average line production
per hour (includes operator
rest breaks and machine
downtime-excludes lunch break)
  330 feet/hour 150 feet/hour
(8 hours on work
site-excluding
lunch break-broken
down for 3 hours
during that period)
80 feet/hour
(2 1/2 hours on work
site-excluding
lunch break-
broken down
for 20 minutes)
100 feet/hour 30 feet/hour
operators switched
off every 10 minutes.
Percent machine downtime   10 minutes of machine
downtime (percent
could not be calculated
because rest break
data not recorded)
38% 13% 5% each hour stop-
page to clean out
head due to clogging
from grass.
No downtime
Quality of line   Acceptable to
unaccepable
Unacceptable Unacceptable Acceptable Acceptable

Safety Concerns

The need to "pull back" on the machine in a raking motion was a concern for most operators because the machine would come close to the forward foot. Rocks and large buried material (such as roots) would make the machine act erratically, affecting operator control. The amount of material thrown behind the machine could be dangerous. No one should be allowed within 50 feet of the operator. One evaluator noted that heat from the muffler was beginning to melt the shoulder harness.

Machine Breakdowns or Stoppages


Figure 4—Tall grasses occasionally get tangled up in the Trail Buster head
and must be removed.
Inset: grass roots wrapped around digging head.

Machine breakdowns were minimal. When the machine was first used, a couple of screws began backing out. After the screws were tightened, no further problems were encountered. In heavier fuels and tall or green grass the head clogged with material, stopping it (Figure 4).

Problems Encountered

Vibration was discussed in many of the evaluations. Vibration limited the time that operators were able to use the Trail Buster. Back fatigue was a major factor—especially for taller operators—because of the machine's weight, its length, and the techniques used to operate it. Operators had best results when standing downslope of the Trail Buster and pulling the debris toward them. Working the Trail Buster on flat ground was harder on the back. Standing upslope of the machine during operation was very difficult. Especially in hard-packed soils, the machine would tend to ride on top of the ground. The Trail Buster did not dig in until it was turned on an angle to "cut" the top few inches of ground litter. Controlling the machine was a problem, especially on slopes.

Operator's Comments

Hard-packed ground and slight slopes affect the operator's ability to control the Trail Buster.

An unusual amount of energy is required to operate the unit on sloped, rocky areas or on hard-packed ground.

Interesting idea, but human output with handtools is far more productive than the Trail Buster.

Machine works well but requires that operator is above-average size, strength, and conditioning.

I'd like to be 24 years old again if I had to operate it daily.

It worked well in open areas and light slash; it did have a lot of vibration.

When digging fireline you have to be sideways of the line so you're always working in brush and not in the fireline.

Takes three to four passes over the same stretch of line.

This equipment would be difficult to pack long distances.

Overall Impressions

The general consensus was that this machine is very heavy (45 pounds—as tested, full of gas), awkward, takes numerous passes to dig adequate line, and is very strenuous to operate, especially on the operator's back. Vibration limited the time that an operator could use the Trail Buster. Many breaks were needed to rest the operator's arms and back. Downtime due to breakdowns was minimal.

Special Niches the Machine May Fill

The Trail Buster seemed to work better on existing trails that needed to be leveled or have material scraped from the surface. The machine works well on flatter surfaces and would be advantageous in recreational areas such as campgrounds or for established trails that need a "facelift." Another possible use may be for scalping tree planting sites.

Improvements Needed

The digging head may need some sort of tooth configuration for digging through the topsoil. The machine seemed to ride on top of the compacted ground, requiring operators to tip the machine at an angle so the edges of the cutters could dig in. Another suggestion was to lengthen the machine by about 10 inches and to make the handle adjustable so that it could be positioned on either side of the belt/chain housing. Persons working on a slope could place the handle in a position that increased their comfort. An adjustable handle would also allow operators to switch hands, reducing fatigue. The strap system used to carry this machine needs to be improved. The Trail Buster is very heavy and awkward to carry long distances. A rubber flap along the bottom of debris guard could help protect the leading foot. If possible, the machine needs to be lightened.

Discussion

Most of the comments compiled during this field evaluation were negative, although a few operators praised the machine for its ability to move a lot of dirt. One evaluator commented that the machine worked well in open areas and light slash, but that it had a hard time cutting through thick grass and short brush. Another evaluator who used the Trail Buster for 20 minutes on a wildfire claimed that it was two to four times faster than a 3-person crew. This evaluator was the only one who recommended the Trail Buster (for use on fires smaller than 5 acres and for mopup). All other evaluators had less than enthusiastic views of the Trail Buster as a fireline construction tool. Some evaluators were concerned that the machine predisposed the operator to lower back or foot injuries.

Conclusions and Recommendations

Most evaluators opposed adding this machine (as currently designed) to their arsenal of fire suppression equipment. If most or all of the equipment modifications suggested by the field are incorporated, the Trail Buster may have a future on the fireline. Until that time, the Trail Buster is not recommended for general fireline construction.

About the Authors…

Vince Welbaum is the helitack supervisor for the Price Valley Helitack on the New Meadows Ranger District of the Payette National Forest. He has a forestry degree from Kings River Community College and has worked in fire control for the Forest Service for the past two decades.

Keith Windell is a Project Leader for reforestation, fire and residues projects. He has a bachelor of science degree in mechanical engineering from Montana State University, as well as an extensive field background. He has worked for the California Department of Forestry, Bureau of Land Management, and the Forest Service.
