Batch Mixer Owner’s Manual (continued)

Back
Table of Contents


Parts List
Hose Reel

Hannay 22-30-31 LT

Hannay Reels, Inc.
553 State Rt 143
Westerlo, Ny 12193-0159
(518) 797-3791
(518) 797-3259 (fax)
www.hannay.com
email: reels@hannay.com


Relief Valve

Kunkle 912BJHM01ME005

TVC NW; Star Brass Seattle
5813 Airport Way South
Seattle,Wa 98108
(206) 762-8001
(206) 762-4722 (fax)


Pressure Gage and Diaphragm

Pressure gage: NOSHOK part number 25-300-100
Diaphragm: NOSHOK part number 25-02SS-SS-02SS
Fill: Glycerin

NOSHOK Inc.
1010 West Bagley Road
Berea, Oh 44017
(440) 243-0888
(440) 243-3472 (fax)
web site: www.noshok.com
email: noshok@noshok.com


Vapor Hose Flame Arrestor

Enardo Model Number 8802/D-AAC

Enardo Manufacturing Company
4470 South 70th East Avenue
Tulsa Ok 74145-4607
(800) 336- 2736
(918) 622-0004 (fax)
web site: www.enardo.com
email: sales@enardo.com


Diesel Engine

Engine: Yanmar L100AE-DEG
Wiring Harness and Panel: Yanmar Part No 114350-77500
Spark Arrestor: Yanmar Part No 183650-13300

Yanmar Diesel America Corp
951 Corporate Grove Drive
Buffalo Grove, Il 60089-4508
(847) 541-1900


Gear Reducer, Base Mounting Kit, Lubricant

Gear Reducer: Hub City Model 66, Style C, 3:1 Reduction Ratio
Base Mounting Kit: Hub City Model 66, Part Number 02-29-00011-066
Lubricant: Hub City GL-90, Part Number 8-58-00-01-009

Hub City
2914 Industrial Avenue
P.O. Box 1089
Aberdeen, SD 57402-1089
(605) 225-0360
(605) 225-0567 (fax)


Coupling (Pump and Engine Shaft)

Pump and Engine Shaft: Lovejoy L110 X 1 Bore Hub with 1/4 X 1/8 keyway, Item number 68514411739
Gear Reducer Shafts: Lovejoy L110 X 1-1/4 Bore Hub with 1/4 X 1/8 keyway, Item number 68514411743
Coupling Spiders: Lovejoy L110SOX, Item Number 68514411724

Lovejoy, Inc.
2655 Wisconsin Avenue
Downers Grove, Il 60515-4299
(630) 852-0500
(630) 852-2120 (fax)
web site: www.lovejoy-inc.com


Pump

Oberdorfer N26HDL

Oberdorfer Pumps Inc.
5900 Firestone Drive
P.O. Box 4770
Syracuse, Ny 13221
(315) 437-0361
(315) 463-9561 (fax)
www.obderdorfer-pumps.com


Directional Control Valve

Marwin 3T-2S33FTRF1-30

Marwin Valve
A Division of Richards Industries
3170 Wasson Road
Cincinnati, Oh 45209
(513) 533-7340
(513) 533-7343 (fax)
web site: www.marwinvalve.com
email: marwin@richardsind.com


Camlock Fittings

Cap: PT Coupling VSL2 2” Aluminum Self Locking Dust Cap (Also McMaster Carr Part Number 51415K185)
Adapter: 2” F Aluminum Adapter—Adapter End X NPT Male End, McMaster Carr Part Number 51415K45

McMaster Carr Supply Company
9630 Norwalk Blvd
Santa Fe Springs, Ca 90670-2932
(562) 692-5911
(562) 695-2323 (fax)
web site: www.mcmaster.com
email: la.sales@mcmaster.com


Tank Re-Circulation Valve and Gaskets

Tank Re-Circulation Valve: Betts Assembly Number EV46326SSTS
Tank to Flange Gasket: Betts Part Number G25507TF or G25507TF-MIL
Flange to Valve Gasket: Betts Part Number G15181TF or G15181TF-MIL

Betts Industries, Inc.
1800 Pennsylvania Avenue W.
Box 888
Warren, Pa 16365-0888
(814) 723-1250
(814) 723-7030 (fax)
email: betts@penn.com


Tank Sump Valve and Gaskets

Sump Valve: Betts Assembly Number EV46242SSTS
Sump Gasket: Betts Part Number G15266TF or G15266TF-MIL

Betts Industries, Inc.
1800 Pennsylvania Avenue W.
Box 888
Warren, Pa 16365-0888
(814) 723-1250
(814) 723-7030 (fax)
email: betts@penn.com


Tank Valve Operator Fusible Link Assemblies

Fusible Bushing Nut: Betts Part Number 19724BR
Lock Nut: Betts Part Number 9Q5808A
Adjusting Bolt: Betts Part Number 20040A
Clamping Nut: Betts Part Number 10268A

Betts Industries, Inc.
1800 Pennsylvania Avenue W.
Box 888
Warren, Pa 16365-0888
(814) 723-1250
(814) 723-7030 (fax)
email: betts@penn.com

Photo showing fusible links.
Fusible Links


Re-Circulation Tube Spray Nozzles

Spraying Systems Co Veejet 65 degree H ¾ U-65400 (Used 4 Places)
Spraying Systems Co VeeJet 95 degree H ¾ U-95400 (Used Nearest Tank Inlet)

Spraying Systems Co.
P.O. Box 7900
Wheaton, Il 60189-7900
(708) 665-5000
(708) 260-0842 (fax)


Hose from Directional Valve to Hose Reel

Hose: Unisource Series 2215 1-1/2” 150 psi hose, 3 feet long

Unisource Manufacturing Inc.
8040 NE 33rd Drive
Portland Or 97211
(800) 234-2566
web site: www.unisource-mfg.com
email: info@unisource-mfg.com

Directional Valve End Fitting: Dixon Part Number H5231-A-BU Female Coupling and R15AS-A Ferrule
Hose Reel End Fitting: Dixon Part Number H5232-A Male Coupling and R15AS-A Ferrule

Dixon Valve & Coupling Company
800 High Street
Chestertown, Md 21620
(800) 355-1991
(800) 283-4966 (fax)
web site: www.dixonvalve.com

Note: Make hose conductive

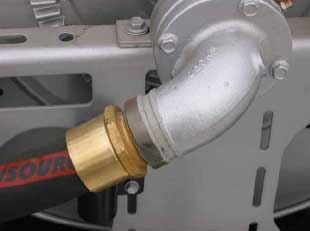

Closeup photo of a directional valve hose connection.
Directional Valve Hose Connection

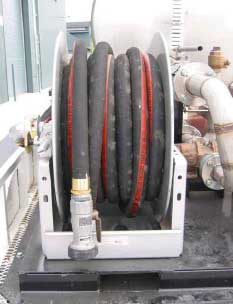

Closeup photo of a hose reel end fitting.
Hose Reel End Fitting


Helitorch Fueling Hose

Hose: Unisource Series 2215 1-1/2” 150 psi hose, 90 feet long

Unisource Manufacturing Inc.
8040 NE 33rd Drive
Portland Or 97211
(800) 234-2566
web site: www.unisource-mfg.com
email: info@unisource-mfg.com

End Fittings: Dixon Part Number H5232-A Male Coupling and R15AS-A Ferrule

Dixon Valve & Coupling Company
800 High Street
Chestertown, Md 21620
(800) 355-1991
(800) 283-4966 (fax)
web site: www.dixonvalve.com

Note: Make hose conductive


Dry Breaks

Adapter (In Main Piping): Emco Wheaton J72A-AVNO-A
Coupler (On end of hose): Emco Wheaton J72C-AVNO-A

Emco Wheaton Corp
2480 Bristol Circle
Oakville, Ontario, Canada L6H 5S1
(905) 829-8619
(905) 829-8620 (fax)
web site: www.emcowheatoncanada.com

Photo of a hose with dry break coupler.
Hose With Dry Break Coupler


Flange Gaskets

2” Kevlar Flange Gasket With Nitrile Binder
McMaster Carr Part Number 9472K45

3” Kevlar Flange Gasket With Nitrile Binder
McMaster Carr Part Number 9472K47

McMaster Carr Supply Company
9630 Norwalk Blvd
Santa Fe Springs, Ca 90670-2932
(562) 692-5911
(562) 695-2323 (fax)
web site: www.mcmaster.com
email: la.sales@mcmaster.com


Metal Hoses (Main Piping)

Pump Connector, McMaster Carr Part Number 5468K73

McMaster Carr Supply Company
9630 Norwalk Blvd
Santa Fe Springs, Ca 90670-2932
(562) 692-5911
(562) 695-2323 (fax)
web site: www.mcmaster.com
email: la.sales@mcmaster.com


Relief System Metal Hose

Stainless Steel Hose Assembly 2” Hex Male NPT X Female Union, McMaster Carr Part Number 5680K761

McMaster Carr Supply Company
9630 Norwalk Blvd
Santa Fe Springs, Ca 90670-2932
(562) 692-5911
(562) 695-2323 (fax)
web site: www.mcmaster.com
email: la.sales@mcmaster.com

Photo of a relief system metal hose, showing a middle hose assembly.
Relief System Metal Hose
(Middle Hose Assembly)
