Helitorch section title

Layout

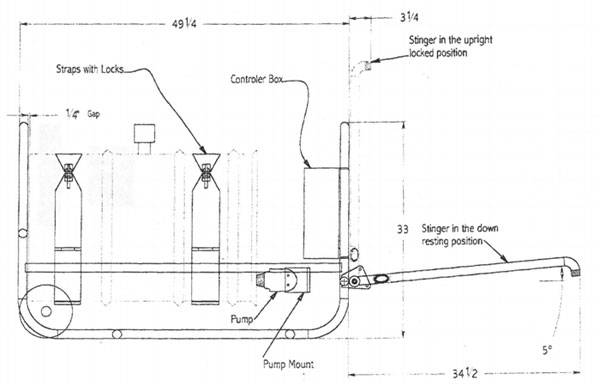

Drawing of the Spec 2000 Helitorch parts. Parts labeled with arrows in the image are: Straps with Locks, Controler Box, Stinger in the upright locked position, Stinger in the down resting position, Pump Mount, and Pump. The length of the machine is labeled as 49¼ inches, the length of the handle connector is 3¼ inches, the length of the handle is 34½ inches, a ¼ inch gap between the tank and frame, and the height is 33 inches. An angle of 5 degrees for the handle is also labeled.

Drawing of the Spec 2000 Helitorch parts. Parts labeled with arrows in the image are: Frame/1 inch pipe aluminum, Qty2 StrapLocks/with added clevis pin lock, 1 inch close nipple, Lifting tubes, 0 24 inch Barrel, Stinger 1 inch pipe, Pump, Pivot Point For Stinger, Pump Mount, 0 8 inch hard rubber wheels, and 3/8 inch x 3 inch grip/pin locks stinger in upright position. The widtch of the Spec 200 Helitorch is labeled as 24 inches, the height as 42¼ inches, and the distance between the tank and top rail as being 4 1/8 inches.
