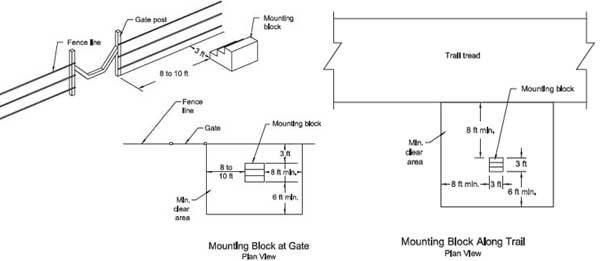

Figure 7–34—Suggested placement for equestrian mounting blocks. The trail gate shown is not accessible to people with disabilities if the bar across the opening is higher than 2 inches from the ground.

Drawing of a fence with a mounting mounting block, drawing of a mounting block at gate view, and drawing of mounting block along trail. In the drawing the text reads, Fence line, Gate post, 8 to 10 ft, 3 ft, Mounting block, Fence line, Gate, Mounting block, Fence line, Gate, 8 ft min., 6 ft min., Min. clear area, Plan view, and Trail tread.
