Sound Measurements of Helicopters During Logging Operations
REY FARVE, Project Leader



Introduction
Study Area
Helicopters
Methodology
Results
Conclusions
Suggestions
References
Acknowledgements
Appendix 1
Appendix 2
Appendix 3
Appendix 4
Appendix 5

Appendix 3 . Sound Measurment Data taken of the Boening Vertol 107-II at Log Landing Sites of the "Cedar House" Timber Sale.

For a pdf version of Appendix 3 - click here.

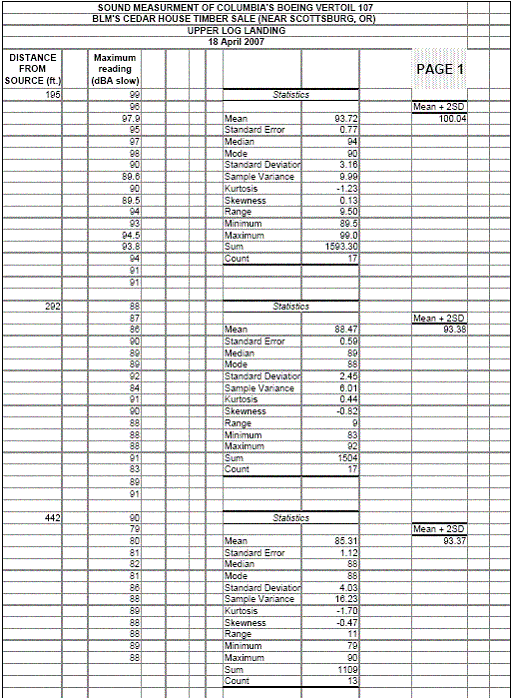

Appendix 3 - raw data - Vertol 107 - page 1

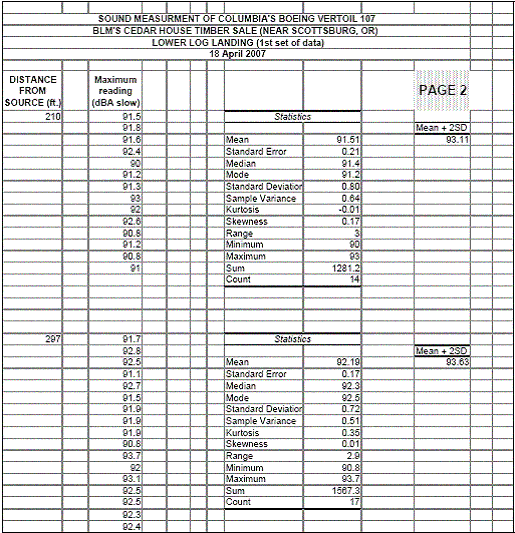

Appendix 3 - raw data - Vertol 107 - page 2

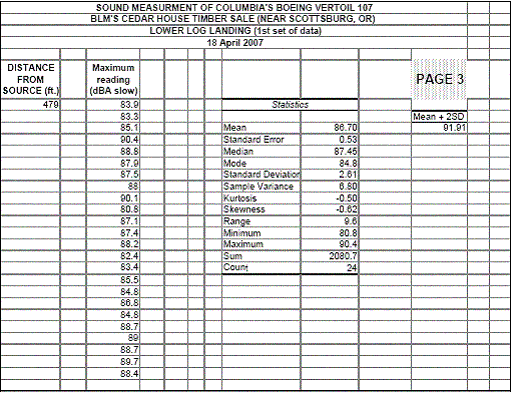

Appendix 3 - raw data - Vertol 107 - page 3



Appendix 3 - raw data - Vertol 107 - page 4
